Traceroute Haiku’s

Sometimes I like to think that I do “serious” blog posts like “The strange case of ICMP Type 69 on Linux” or “Anycast possibly done better”. However I also do a lot of stupid ones like “IP over AX.25 over 802.11 with ESP8266”, “I may be the only evil (bit) user on the internet” or “TOTP SSH port fluxing”.

This one definitely falls into the latter category.

Traceroutes are a common network debugging diagnostic tool. They (should) list every router that your packet travels through to get to its final destination. Here is what it looks like from my flat to my website:

# traceroute6 benjojo.co.uk -q 1
traceroute to benjojo.co.uk (2400:cb00:2048:1::6814:6110), 30 hops max, 80 byte packets
 1  switch0.home-edge.bone.benjojo.co.uk (2a07:1500:4663::2)  0.245 ms
 2  home-ipv6.choopa-lhr.bone.benjojo.co.uk (2a07:1500:1111::2)  1.358 ms
 3  *
 4  2001:19f0:7400:8000::1 (2001:19f0:7400:8000::1)  1700.039 ms
 5  ldn-b3-link.telia.net (2001:2000:3080:dc1::1)  1.744 ms
 6  ldn-b5-v6.telia.net (2001:2000:3018:b::1)  1.968 ms
 7  cloudflare-ic-306325-ldn-b3.c.telia.net (2001:2000:3080:a4b::2)  2.307 ms
 8  2400:cb00:21:1024::a29e:99be (2400:cb00:21:1024::a29e:99be)  2.231 ms

Traceroutes work using the Time To Live (for IPv4) or Hop Limit (for IPv6) field.

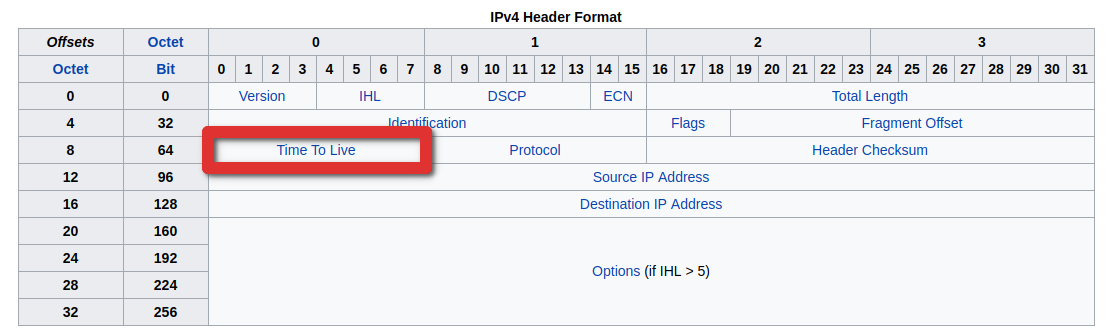

IPv6 packet diagram

The idea of this value is to stop packets from infinitely going in circles in case of a fault in a network. For every router a packet jumps though, this number is decreased.

However to let the other side know that a packet was lost in the manner, the router is supposed to return the packet inside another packet to notify them:

IPv6 ICMP packet in wireshark

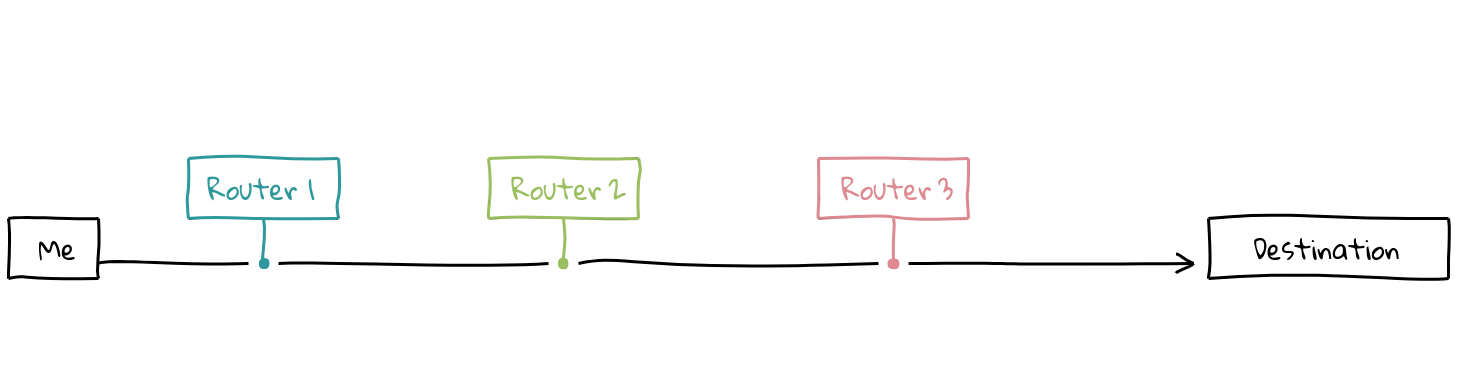

The idea of traceroute is to purposely set this hop limit very low and incrementally increase it upwards to discover all routers in the path between you and the destination:

how a traceroute works gif

In addition, traceroute tools helpfully lookup the “reverse DNS” of the IP address to find out more information about the router. Even if placing reverse DNS on these IP addresses is entirely optional, most operators do set it to help their clients debug things.

Critically, if you own an IP block you can point the reverse DNS to whatever you want (most hosting providers let you edit their zone file though, though some of them validate the records you provide). People have used that and this common feature of traceroute to build fun addresses to trace that often spell out funny things, one example being bad.horse:

ben@metropolis:~$ traceroute bad.horse --resolve-hostnames -q 1 -f 20
traceroute to bad.horse (162.252.205.157), 64 hops max
  1   162.252.205.3 (t01.nycmc1.ny.us.sn11.net)  91.633ms
  2   162.252.205.130 (bad.horse)  92.802ms
  3   162.252.205.131 (bad.horse)  97.476ms
  4   162.252.205.132 (bad.horse)  104.194ms
  5   162.252.205.133 (bad.horse)  107.089ms
  6   162.252.205.134 (he.rides.across.the.nation)  111.847ms
  7   162.252.205.135 (the.thoroughbred.of.sin)  117.324ms
  8   162.252.205.136 (he.got.the.application)  121.631ms
  9   162.252.205.137 (that.you.just.sent.in)  129.549ms
 10   162.252.205.138 (it.needs.evaluation)  132.131ms
 11   162.252.205.139 (so.let.the.games.begin)  138.446ms
 12   162.252.205.140 (a.heinous.crime)  145.218ms
 13   162.252.205.141 (a.show.of.force)  146.721ms
 14   162.252.205.142 (a.murder.would.be.nice.of.course)  151.821ms
 15   162.252.205.143 (bad.horse)  156.510ms
 16   162.252.205.144 (bad.horse)  161.704ms
 17   162.252.205.145 (bad.horse)  166.850ms
 18   162.252.205.146 (he-s.bad)  171.846ms
 19   162.252.205.147 (the.evil.league.of.evil)  180.018ms
 20   162.252.205.148 (is.watching.so.beware)  187.773ms
 21   162.252.205.149 (the.grade.that.you.receive)  188.834ms
 22   162.252.205.150 (will.be.your.last.we.swear)  191.852ms
 23   162.252.205.151 (so.make.the.bad.horse.gleeful)  196.578ms
 24   162.252.205.152 (or.he-ll.make.you.his.mare)  202.037ms
 25   162.252.205.153 (o_o)  207.124ms
 26   162.252.205.154 (you-re.saddled.up)  211.627ms
 27   162.252.205.155 (there-s.no.recourse)  219.691ms
 28   162.252.205.156 (it-s.hi-ho.silver)  222.107ms
 29   162.252.205.157 (signed.bad.horse)  225.336ms

Or Louis Poinsignon (https://www.mygb.eu), who made a version of his CV/Resume for traceroute!

# mtr -rwc 1  cv6.poinsignon.org
Start: Mon Sep  4 14:27:22 2017
HOST:                                              Loss%
  1.|-- switch0.home-edge.bone.benjojo.co.uk          0.0%
  2.|-- Benjojo-2.tunnel.tserv17.lon1.ipv6.he.net     0.0%
  3.|-- 10ge3-3.core1.lon2.he.net                     0.0%
  4.|-- 100ge6-2.core1.ams1.he.net                    0.0%
  5.|-- amsix.poneytelecom.eu                         0.0%
  6.|-- 2001:bc8:0:1::131                             0.0%
  7.|-- 2001:bc8:400:1::32                            0.0%
  8.|-- hello                                         0.0%
  9.|-- My.name.is.Louis.Poinsignon                   0.0%
 10.|-- I.am.a.network.and.systems.Engineer           0.0%
 11.|-- This.is.my.resume.over.traceroute             0.0%
 12.|-- o---Experience---o                            0.0%
 13.|-- 2017.Cloudflare.NetworkEngineer.London        0.0%
 14.|-- 2016.Cloudflare.NetworkEngineer.Intern.SF     0.0%
 15.|-- 2015.CEA.SoftwareEngineer.Intern.France       0.0%
 16.|-- 2014.Android.dev.Remote                       0.0%
 17.|-- o---Education---o                             0.0%
 18.|-- 2015-2016.DrexelUni.Exchange.CE.Philadelphia  0.0%
 19.|-- 2011-2016.UTT.Master.CE.France                0.0%
 20.|-- o---Skills---o                                0.0%
 21.|-- C.Java.Python.Maths                           0.0%
 22.|-- Net.Linux.Archicture                          0.0%
 23.|-- Statistics.Maths.Design.Photoshop             0.0%
 24.|-- o---Various---o                               0.0%
 25.|-- Swimming.and.karate                           0.0%
 26.|-- Piano                                         0.0%
 27.|-- o---Contact---o                               0.0%
 28.|-- mail.jobs.at.poinsignon.org                   0.0%
 29.|-- cv6.poinsignon.org                            0.0%

I can think of two ways this can be done: either chain lots of fake interfaces inside a single system and use that as “router hops”, or augment the whole thing with user space networking to generate the fake expiry messages to make it seem like there are routers in the path that are not there.

stand back i'm going to do user space networking or science (xkcd)

To do this today, I am going to use a built in system inside linux called TUN/TAP. This is the system used to make VPNs work. The idea is that it can make a “network port” on your computer, that instead of going to a physical section of hardware, goes instead to a program that handles the packet.

The idea is to write a simple network adapter that would insert 4 fake router hops for any packet destined for an address ending in 4.

With these fake 4 router hops, I can fit 4 small sentences in the reverse DNS entries of the IP addresses. I opted to show a Haiku since they are small, typically 3 sentences, and we can find lots of them:

whitecaps on the bay

the overhead cries

of migrating birds

Polona Oblak

I could turn this into:

Whitecaps.on.the.bay

The.overhead.cries

Of.migrating.birds

author.Polona.Oblak

I then wrote the networking config to route a /48 of IPv6 space to a Raspberry Pi on my shelf, and got to writing the TUN adapter. The idea was to do something like this:

networking stack diagram

Thankfully the process to generate “TTL/Hop limit expired” packets is fairly easy, and you can find the code to do this here: https://github.com/benjojo/traceroute-haiku/blob/master/haiku-tun/main.go

All wrapped up in a basic systemd service and we are good to go:

[Service]
Type=simple
ExecStart=/usr/bin/haiku-tun
ExecStartPost=/bin/sleep 2
ExecStartPost=/sbin/ifconfig haiku0 up
ExecStartPost=/bin/ip -6 addr add 2a07:1500:c::1 dev haiku0
ExecStartPost=/bin/ip -6 route add 2a07:1500:c::/64 dev haiku0
ExecStartPost=/sbin/sysctl -w net.ipv6.conf.all.forwarding=1

Restart=always
StandardOutput=syslog
StandardError=syslog
SyslogIdentifier=haiku
User=root

[Install]
WantedBy=multi-user.target

I then scraped all of www.dailyhaiku.org (sorry!) using Lynx and a bash loop, and then wrote a small go program to generate the required BIND zone file entries:

ben@metropolis:~/traceroute-haiku/haikus$ ./haikus | more
2017/09/05 23:59:04 # We found 3078 haikus
0.0.0.0.0.2.0.0.0.0.0.0.0.0.0.0.0.0.0.0.c.0.0.0.0.0.5.1.7.0.a.2.ip6.arpa.        10        IN        PTR        haiku-trace.x.benjojo.co.uk.
1.0.0.0.0.2.0.0.0.0.0.0.0.0.0.0.0.0.0.0.c.0.0.0.0.0.5.1.7.0.a.2.ip6.arpa.        10        IN        PTR        balmy.breeze.
2.0.0.0.0.2.0.0.0.0.0.0.0.0.0.0.0.0.0.0.c.0.0.0.0.0.5.1.7.0.a.2.ip6.arpa.        10        IN        PTR        swarming.bees.circle.
3.0.0.0.0.2.0.0.0.0.0.0.0.0.0.0.0.0.0.0.c.0.0.0.0.0.5.1.7.0.a.2.ip6.arpa.        10        IN        PTR        the.river.bank.
4.0.0.0.0.2.0.0.0.0.0.0.0.0.0.0.0.0.0.0.c.0.0.0.0.0.5.1.7.0.a.2.ip6.arpa.        10        IN        PTR        author.olona.blak.

After that, some basic bash script to rotate every minute the addresses that haiku-trace.x.benjojo.co.uk resolve to, to ensure that you have fresh ones every time, and we are away!

haiku trace on windows

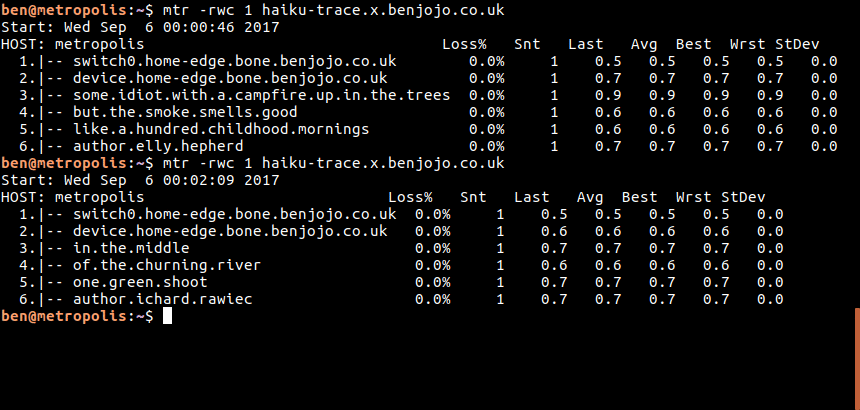

haiku trace with linux and mtr

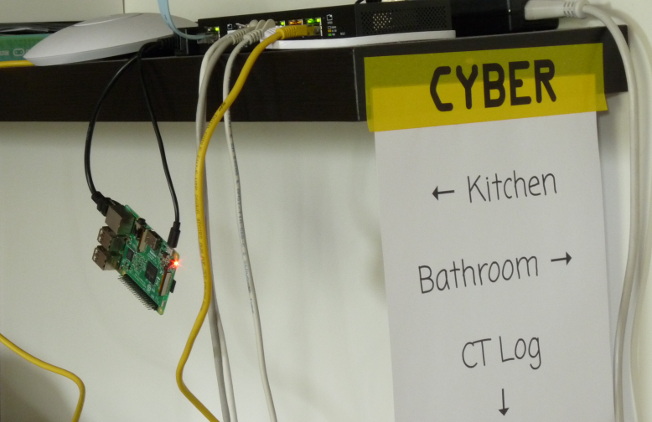

All served from this precariously hanging pi in my living room :)

the pi powering it all, hanging from it's POE adapter
